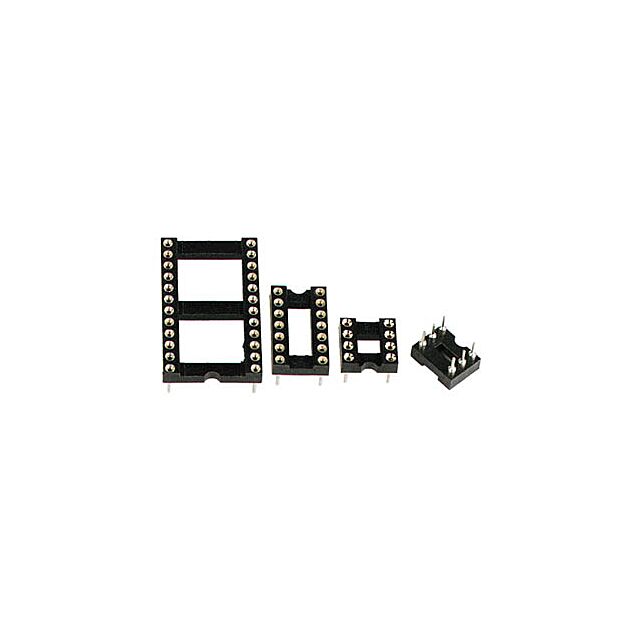

20P DIL IC SOCKET TULIP 300MIL

€1.35
Availability: In stock or 3 working days
SKU
VL_20PT
More Information
Height0.750000
External Id20PT
EAN5410329281915
PackagingVrac
Width2.560000
Depth1.020000
Product basic info
  • Primary colours: Black
  • Additional colours: Grey
  • Depth unit: 25.3 mm
  • Height unit: 10.2 mm
  • Width unit: 10.1 mm
  • Weight unit: 1.4 g
  • Material: Glass-filled polyester
Physical properties
  • Finish: Tin-plated
  • Dimensions IC sockets: <ul> <li>A: 25.3 mm</li> <li>B: 10.1 mm</li> <li>C: 7.62 mm</li> </ul>
  • Contact material: Copper
  • Pin type: Turned
  • Single strip: No
Electrical data
  • Maximum current rating: 3 A
  • Electronical discontinuity: <= 1 µs
  • MIL: 300
  • Maximum contact resistance: 10 milliohm
  • Minimum insulation resistance: 10000 megohm
Technical data
  • Mounting type: Through hole
  • Number of contacts: 20
  • Flammability rating: UL 94 V-0
  • Pitch: 2.54 mm
  • IC socket type: DIL
  • Minimum number of operating cycles: 100
  • Test voltage: 1000 V
Environmental data
  • Operating temperature range: -55-125 °C
Operational properties
  • Contact type: Tulip
Power supply
  • Voltage rating VAC: 100 V AC
