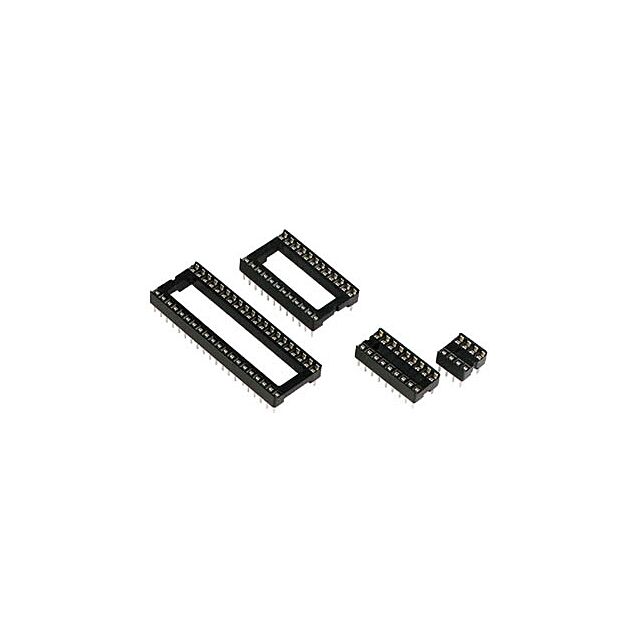

24P DIL IC SOCKET 300MIL
€1.10
Availability: In stock or 3 working days
SKU
VL_24PS
Height | 0.820000 |
---|---|
External Id | 24PS |
EAN | 5410329338473 |
Packaging | Vrac |
Width | 3.030000 |
Depth | 0.990000 |
Product basic info
- Primary colours: Black
- Additional colours: Grey
- Depth unit: 30.35 mm
- Height unit: 8.68 mm
- Width unit: 10.01 mm
- Weight unit: 1.6 g
- Material: Glass-filled thermoplastic (PBT)
Physical properties
- Finish: Tin-plated
- Dimensions IC sockets: <ul> <li>A: 7.62 mm</li> <li>B: 10.01 mm</li> <li>C: 30.35 mm</li> <li>D: 8.13 mm</li> <li>E: 27.94 mm</li> </ul>
- Finish inner contact: Phosphor bronze
- Contact material: Copper
- Pin type: Stamped
- Single strip: No
Electrical data
- Maximum current rating: 1 A
- MIL: 300
- Minimum withstanding rms voltage: 1000 V
- Maximum contact resistance: 20 milliohm
- Minimum insulation resistance: 1000 megohm
Technical data
- Mounting type: Through hole
- Number of contacts: 24
- Flammability rating: UL 94 V-0
- Pitch: 2.54 mm
- IC socket type: DIL
- Maximum insertion force: 340 g
- Minimum extraction force: 50 g
Environmental data
- Operating temperature range: -55-105 °C
Operational properties
- Contact type: Spring
Power supply
- Voltage rating VAC: 250 V AC
