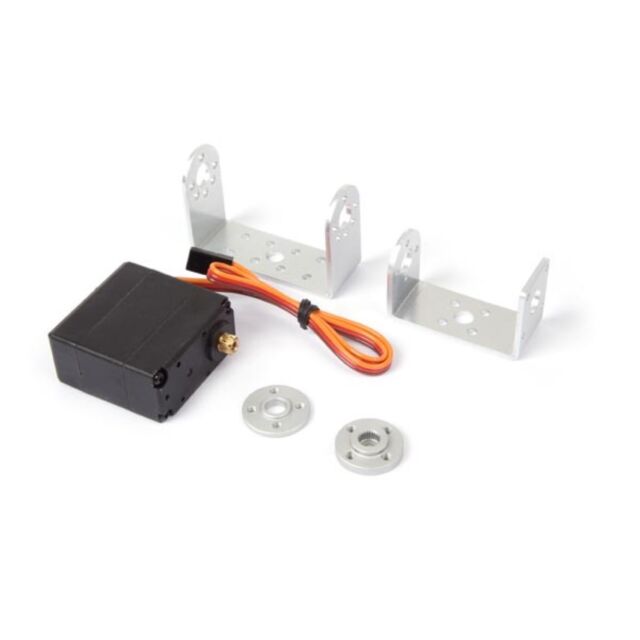

270° ROBOT DIGITAL DOUBLE SHAFT SERVO KIT
€25.90
Availability: In stock or 3 working days
SKU
VL_WPK601
| Height | 15.500000 |
|---|---|
| External Id | WPK601 |
| EAN | 5410329729790 |
| Packaging | Boîte |
| Width | 7.800000 |
| Depth | 3.700000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Black
- Additional colours: Orange
- Depth unit: 40 mm
- Height unit: 20 mm
- Width unit: 40.5 mm
- Weight unit: 64 g
Technical data
- Specifications kits & modules: Specifications <ul> <li>operating speed (at no load): 0.14 sec/ 60° at 7.2 V</li> <li>running current (at no load): 100 mA at 7.2 V</li> <li>stall torque (at lock): 15 kg at 7.2 V</li> <li>stall current (at lock): 1.5 A at 7.2 V</li> <li>idle current (at stopped): 5 mA</li> <li>operating frequency: 50 - 330 Hz</li> <li>operating angle: 90°/135° (from 1000 to 2000 usec)</li> <li>neutral position: 1500 usec</li> <li>dead band width: 3 usec</li> <li>rotating direction: counter clockwise (from 1000 to 2000 usec)</li> <li>pulse width range: from 500 to 2500 usec</li> </ul>
- Specifications extra kits & modules: <ul><li>connector wire gauge: #28 PVC</li><li>connector wire length: 320 ± 5 mm</li><li>horn gear spline: 25T/5.80</li><li>reduction ratio: 310:1</li><li>operating temperature range: -10°C - 50°C</li><li>operating voltage: 5 V - 7.2 V</li><li>connection: orange = PWM, red = VCC , brown = GND</li></ul>
Operational properties
- Coding skill level: 2
- Electronics skill level: 2
- Mechanics skill level: 2
- Soldering skill level: none
