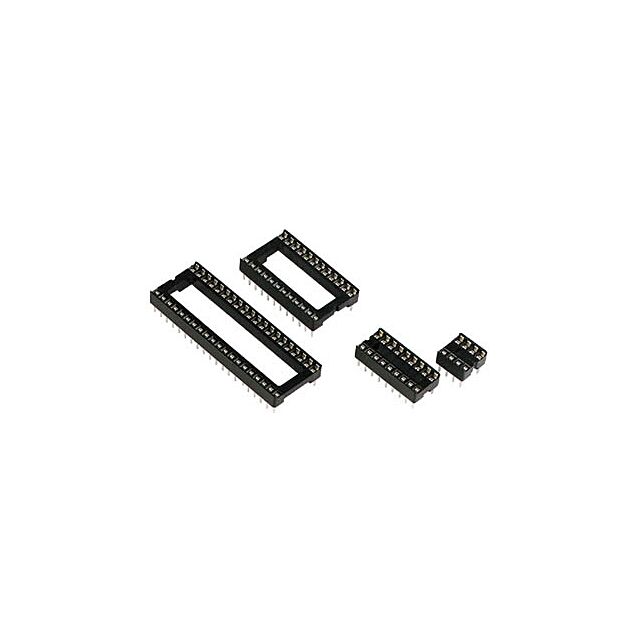

28P DIL IC SOCKET 300MIL

was €1.30 Special Price €1.00
Availability: In stock or 3 working days
SKU
VL_28PS
More Information
Height0.830000
External Id28PS
EAN5410329239770
PackagingVrac
Width3.500000
Depth0.990000
Product basic info
  • Primary colours: Black
  • Additional colours: Grey
  • Depth unit: 35.43 mm
  • Height unit: 8.68 mm
  • Width unit: 10.01 mm
  • Weight unit: 1.9 g
  • Material: Glass-filled thermoplastic (PBT)
Physical properties
  • Finish: Tin-plated
  • Dimensions IC sockets: <ul> <li>A: 7.62 mm</li> <li>B: 10.01 mm</li> <li>C: 35.43 mm</li> <li>D: 8.1 mm</li> <li>E: 33.02 mm</li> </ul>
  • Finish inner contact: Phosphor bronze
  • Contact material: Copper
  • Pin type: Stamped
  • Single strip: No
Electrical data
  • Maximum current rating: 1 A
  • MIL: 300
  • Minimum withstanding rms voltage: 1000 V
  • Maximum contact resistance: 20 milliohm
  • Minimum insulation resistance: 1000 megohm
Technical data
  • Mounting type: Through hole
  • Number of contacts: 28
  • Flammability rating: UL 94 V-0
  • Pitch: 2.54 mm
  • IC socket type: DIL
  • Maximum insertion force: 340 g
  • Minimum extraction force: 50 g
Environmental data
  • Operating temperature range: -55-105 °C
Operational properties
  • Contact type: Spring
Power supply
  • Voltage rating VAC: 250 V AC
