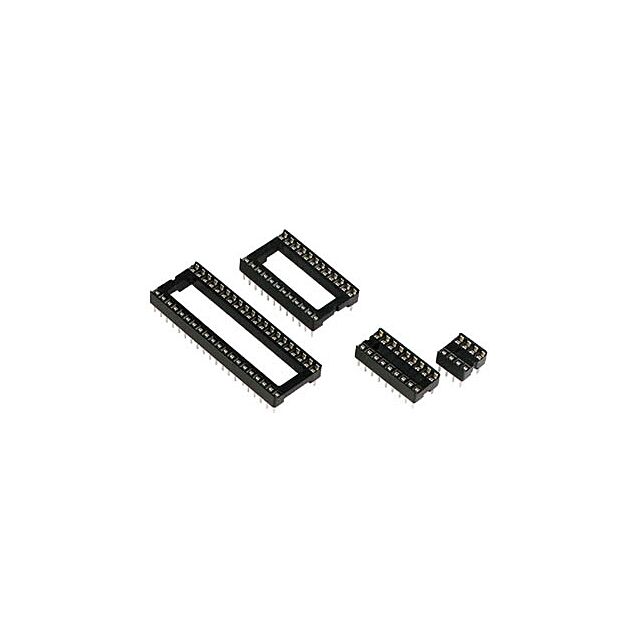

40P DIL IC SOCKET 600MIL
€1.80
Availability: In stock or 3 working days
SKU
VL_40P
| Height | 0.810000 |
|---|---|
| External Id | 40P |
| EAN | 5410329306984 |
| Packaging | Vrac |
| Width | 5.000000 |
| Depth | 1.760000 |
Product basic info
- Primary colours: Black
- Additional colours: Grey
- Depth unit: 50.67 mm
- Height unit: 8.68 mm
- Width unit: 17.63 mm
- Weight unit: 3 g
- Material: Glass-filled thermoplastic (PBT)
Physical properties
- Finish: Tin-plated
- Dimensions IC sockets: <ul> <li>A: 15.24 mm</li> <li>B: 17.63 mm</li> <li>C: 50.67 mm</li> <li>D: 15.75 mm</li> <li>E: 48.26 mm</li> </ul>
- Finish inner contact: Phosphor bronze
- Contact material: Copper
- Pin type: Stamped
- Single strip: No
Electrical data
- Maximum current rating: 1 A
- MIL: 600
- Minimum withstanding rms voltage: 1000 V
- Maximum contact resistance: 20 milliohm
- Minimum insulation resistance: 1000 megohm
Technical data
- Mounting type: Through hole
- Number of contacts: 40
- Flammability rating: UL 94 V-0
- Pitch: 2.54 mm
- IC socket type: DIL
- Maximum insertion force: 340 g
- Minimum extraction force: 50 g
Environmental data
- Operating temperature range: -55-105 °C
Operational properties
- Contact type: Spring
Power supply
- Voltage rating VAC: 250 V AC
