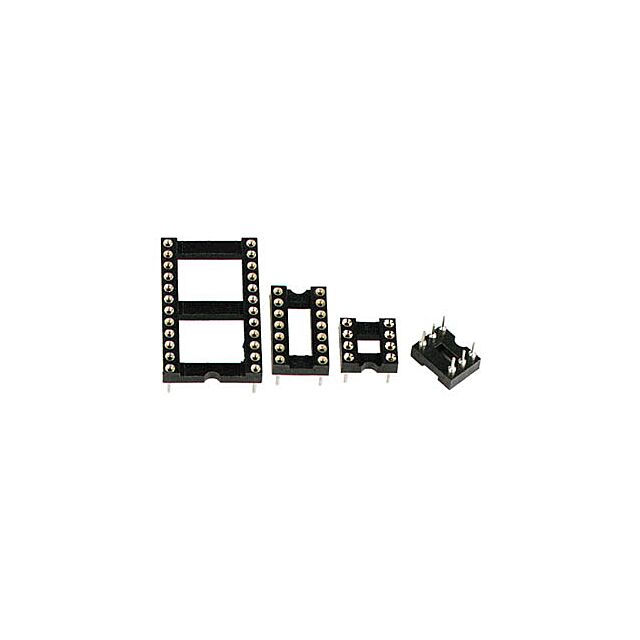

40P DIL IC SOCKET TULIP 600MIL
€2.85
Availability: In stock or 3 working days
SKU
VL_40PT
| Height | 0.740000 |
|---|---|
| External Id | 40PT |
| EAN | 5410329281939 |
| Packaging | Vrac |
| Width | 5.100000 |
| Depth | 1.790000 |
Product basic info
- Primary colours: Black
- Additional colours: Grey
- Depth unit: 50.6 mm
- Height unit: 10.2 mm
- Width unit: 17.7 mm
- Weight unit: 3.3 g
- Material: Glass-filled polyester
Physical properties
- Finish: Tin-plated
- Dimensions IC sockets: <ul><li>A: 50.6 mm</li><li>B: 17.7 mm</li><li>C: 15.24 mm</li></ul>
- Contact material: Copper
- Pin type: Turned
- Single strip: No
Electrical data
- Maximum current rating: 3 A
- Electronical discontinuity: <= 1 µs
- MIL: 600
- Maximum contact resistance: 10 milliohm
- Minimum insulation resistance: 10000 megohm
Technical data
- Mounting type: Through hole
- Number of contacts: 40
- Flammability rating: UL 94 V-0
- Pitch: 2.54 mm
- IC socket type: DIL
- Minimum number of operating cycles: 100
- Test voltage: 1000 V
Environmental data
- Operating temperature range: -55-125 °C
Operational properties
- Contact type: Tulip
Power supply
- Voltage rating VAC: 100 V AC
