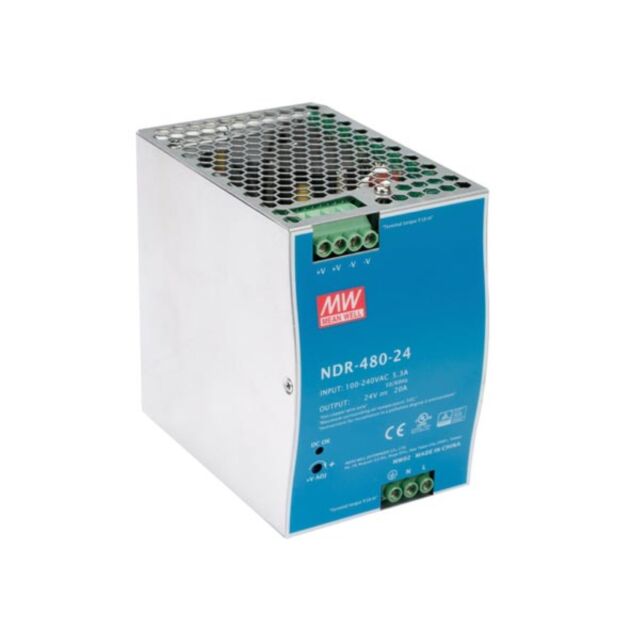

480 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 V 20 A
€179.00
Availability: In stock or 3 working days
SKU
VL_NDR-480-24
The NDR-480 series is an economical slim 480 W Din rail power supply series that can be installed on TS-35/7.5 or TS-35/15 mounting rails. With a body width of 85.5 mm, the device allows space saving @@@inside the cabinets. The series adopts the full range AC input from 90 VAC to 264 VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-480 has a metal housing to enhance power dissipation. With working efficiency up to 93%, the series can operate at the ambient temperature between -20 °C and 70 °C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. Its protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, etc.) make the NDR-480 a very competitive power supply solution for industrial applications.
| Height | 14.500000 |
|---|---|
| External Id | NDR-480-24 |
| EAN | 4711287422305 |
| Packaging | Boîte |
| Width | 17.000000 |
| Depth | 12.000000 |
Product basic info
- Primary colours: Grey
- Additional colours: Grey
- Additional detailed colours: Metallic silver
- Depth unit: 128.5 mm
- Height unit: 125.5 mm
- Width unit: 85.5 mm
- Weight unit: 1500 g
- Material: Flame-retardant PC (polycarbonate)
Physical properties
- Number of outputs: 1
Electrical data
- Output power rating: 480 W
- Output current rating: 20 A
Technical data
- Mounting type: DIN-rail mounting
- Input efficiency: 92.5 %
- Power supply series: NDR
Environmental data
- IP rating: IP20
- Usage location: Indoor only
Power supply
- Output voltage rating VDC: 24 V
- Input voltage rating VAC range: 90-264 V
- Input voltage rating VDC range: 127-370 V
- Input current rating at 115 VAC: 4.8 A
- Input current rating at 230 VAC: 2.4 A
- Input frequency range: 47-63 Hz
- entrée CA universelle / plage complète
- protection: court-circuit / surcharge / surtension / surchauffe
- conçu pour montage sur rail DIN TS-35/7.5 ou 15
- conforme à la norme UL 508 (norme de sécurité pour les équipements de contrôle industriel)
- niveau d'immunité industriel EN61000-6-2 (EN50082-2)
- prétestée sur 100 % de la puissance
- usage professionnel uniquement
- Cet appareil doit être installé par un technicien qualifié.
