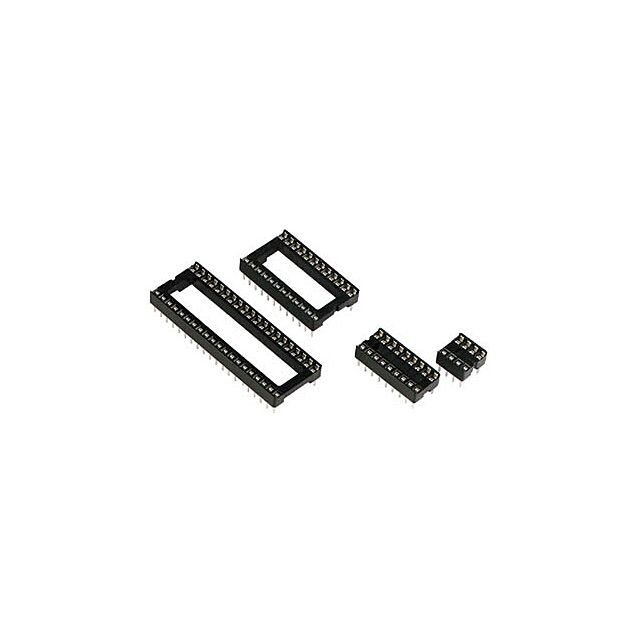

8P DIL IC SOCKET 300MIL

€0.50
Availability: In stock or 3 working days
SKU
VL_8P
More Information
Height0.810000
External Id8P
EAN5410329305185
PackagingVrac
Width1.030000
Depth1.010000
Product basic info
  • Primary colours: Black
  • Additional colours: Green
  • Depth unit: 10.03 mm
  • Height unit: 8.68 mm
  • Width unit: 10.01 mm
  • Weight unit: 0.5 g
  • Material: Glass-filled thermoplastic (PBT)
Physical properties
  • Finish: Tin-plated
  • Dimensions IC sockets: <ul><li>A: 7.62 mm</li><li>B: 10.01 mm</li><li>C: 10.03 mm</li><li>D: 8.13 mm</li><li>E: 7.62 mm</li></ul>
  • Finish inner contact: Phosphor bronze
  • Contact material: Copper
  • Pin type: Stamped
  • Single strip: No
Electrical data
  • Maximum current rating: 1 A
  • MIL: 300
  • Minimum withstanding rms voltage: 1000 V
  • Maximum contact resistance: 20 milliohm
  • Minimum insulation resistance: 1000 megohm
Technical data
  • Mounting type: Through hole
  • Number of contacts: 8
  • Flammability rating: UL 94 V-0
  • Pitch: 2.54 mm
  • IC socket type: DIL
  • Maximum insertion force: 340 g
  • Minimum extraction force: 50 g
Environmental data
  • Operating temperature range: -55-105 °C
Operational properties
  • Contact type: Spring
Power supply
  • Voltage rating VAC: 250 V AC
