A/D D/A CONVERTER MODULE PCF8591
€7.90
Availability: In stock or 3 working days
SKU
VL_WPM344

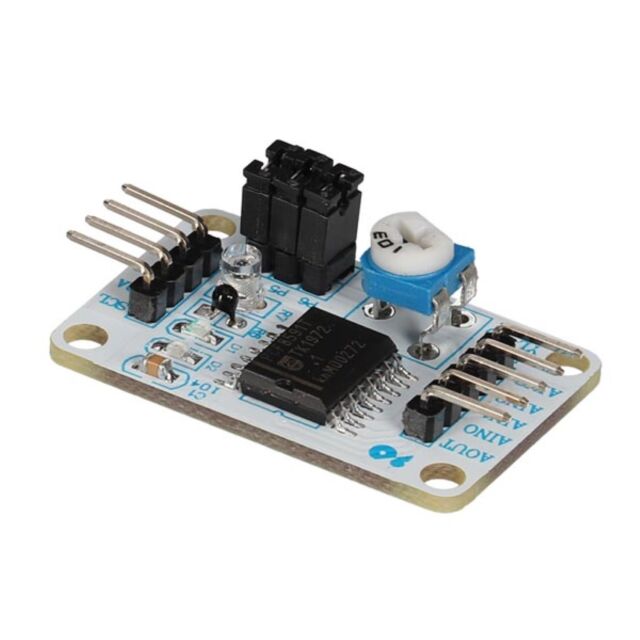

This PCF8591 module is a monolithically integrated, low-power, 8-bit CMOS data acquisition device. The PCF8591 has four analog inputs, one analog output and a serial I2C bus interface. For testing purposes, the module contains a phototransistor, NTC and a trimmer which are connected to the PCF8591 by 3 jumpers.
| Height | 15.500000 |
|---|---|
| External Id | WPM344 |
| EAN | 5410329729967 |
| Packaging | Boîte |
| Width | 7.800000 |
| Depth | 3.800000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Blue
- Additional colours: Black, Blue, White
- Additional detailed colours: Light blue
- Weight unit: 10 g
Technical data
- Specifications kits & modules: Features <ul> <li>single power supply</li> <li>operating supply voltage 2.5 V to 6.0 V</li> <li>low standby current</li> <li>serial input and output via I2C-bus</li> <li>max sampling rate given by I2C-bus speed</li> <li>4 analog inputs configurable as single ended or differential inputs</li> <li>auto-incremented channel selection</li> <li>analog voltage range from VSS to VDD</li> <li>on-chip track and hold circuit</li> <li>8-bit successive approximation A/D conversion</li> <li>multiplying DAC with one analog output</li> </ul>
Operational properties
- Coding skill level: 2
- Electronics skill level: 3
- Mechanics skill level: 1
- Soldering skill level: none
