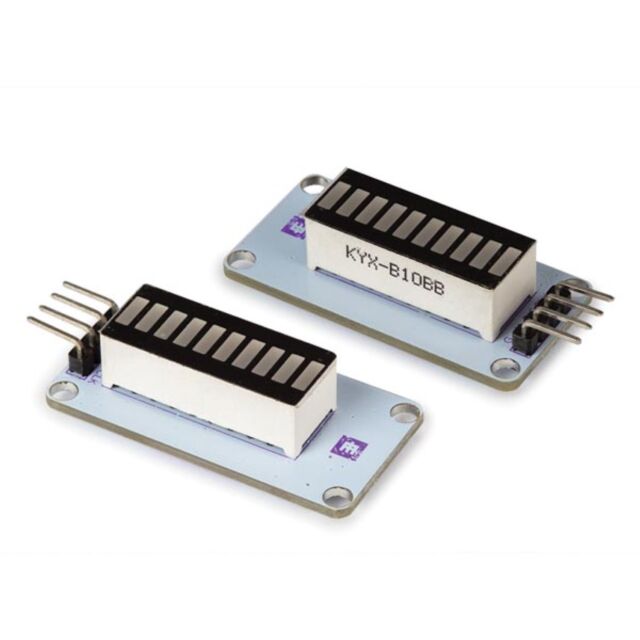

BAR GRAPH DISPLAY MODULE (2 pcs)
€8.95
Availability: In stock or 3 working days
SKU
VL_WPI471
This module is ideally suited to display levels of battery charge, water tanks, etc…! The Whadda bar graph module allows any microcontroller board to easily drive a 10-segment blue LED bar graph. The module uses a TM1651 LED driver chip to drive the individual LED segments, which can be controlled by using only 2 GPIO pins of a microcontroller (such as an Arduino® compatible board). It should be noted that some of the LED-segments are wired together, resulting in 8 different controllable states of the LED bar graph.
| Height | 15.500000 |
|---|---|
| External Id | WPI471 |
| EAN | 5410329731830 |
| Packaging | Boîte |
| Width | 7.500000 |
| Depth | 3.500000 |
| Customer reference | FLO |
Product basic info
- Instruction manual languages: English
- Primary colours: Blue
- Additional colours: Black, White
- Additional detailed colours: Light blue
- Weight unit: 16 g
Technical data
- Specifications kits & modules: Features <ul> <li>drive a 10-segment blue LED bar graph</li> <li>controllable by 2 GPIO pins</li> </ul> Specifications <ul> <li>supply voltage: 3,3 - 5 V DC</li> <li>color: blue</li> <li>driver chip : TM1651</li> <li>number of LED segments: 10</li> <li>number of level indicators: 8</li> <li>interface: 2 wire serial</li> </ul>
