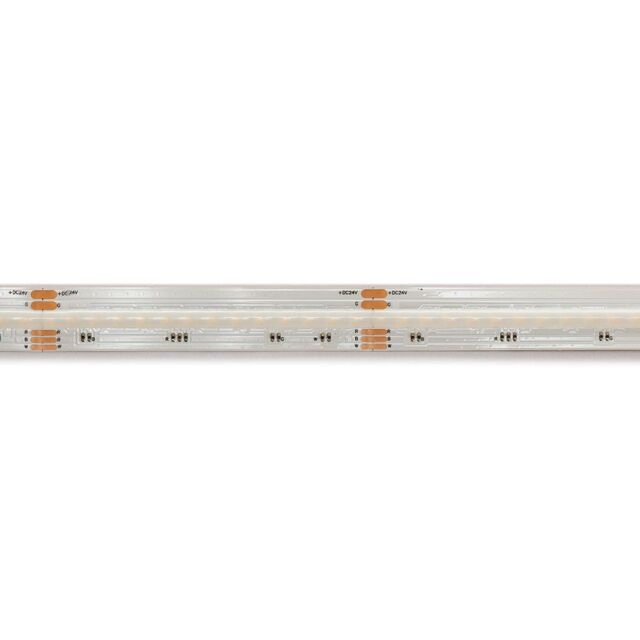

COB flexible LED strip - RGB and white 2700K - 896 LEDs/m - 5 m - 24 V - IP20
€169.90
Availability: In stock or 3 working days
SKU
VL_E24M690RGBW
This LED strip has a unique construction. The LED-die is directly mounted (pure gold bonded) on a specially designed flexible PCB. The LED silicon is directly added on the PCB instead of in the standard LED chip (LED container). This unique technique allows us to create an entirely even light line. Separate LED dots aren't visible even when using an aluminum profile with transparent cover. This technology provides a perfect color mixing. There are no separate Red, Green and Blue components visible while mixing colors. Additionally there is a perfect warm white color which allows you to use this LED strip as standard warm white light source as well as perfect uniform color mixing effects.
| Height | 23.800000 |
|---|---|
| External Id | E24M690RGBW |
| EAN | 5410329757977 |
| Packaging | Enveloppe |
| Width | 21.800000 |
| Depth | 1.500000 |
Product basic info
- Primary colours: White
- Height unit: 1.8 mm
- Width unit: 12 mm
- Weight unit: 120 g
- Material: PI (polyimide)
- Additional material: Copper
Physical properties
- Cable length: 35 cm
- Number of LEDs: 4480
- Number LEDs per meter: 896
- Coating type: No coating
- LED strip length: 5 m
Electrical data
- Energy label: G
Technical data
- Colour rendering index: 91
- Colour temperature: 2689 °K
- LED spacing: 1.12 mm
- LEDstrip colour type: RGB + warm white
- LED type: COB
- Average lifetime: 25000 h
- Viewing angle: 180 °
- Black wire: 24 VDC
- Blue wire: Ground
- Green wire: Ground
- Red wire: Ground
- White wire: Ground
- Luminous flux blue LED per 50 cm - 360°: 38.7 lm
- Luminous flux green LED per 50 cm: 207.8 lm
- Luminous flux red LED per 50 cm: 54.4 lm
- Peak wavelength red LED: 632 nm
- Peak wavelength blue LED: 452.7 nm
- Peak wavelength green LED: 523.8 nm
- Luminous flux white LED per 50 cm: 157 lm
- Colour of LEDs: Blue, Green, Red, White
- Colour of LEDs detailed: Blue, Green, Red, Warm white
Environmental data
- IP rating: IP20
- Operating temperature range: -10-50 °C
- Usage location: Indoor only
Operational properties
- Cutting distance: 6 cm
- Self-adhesive: Yes
Power supply
- Input voltage rating VDC: 24 V
- Power consumption blue LED per 50 cm: 2.34 W
- Power consumption green LED per 50 cm: 1.87 W
- Power consumption red LED per 50 cm: 2.09 W
- Power consumption white LED per 50 cm: 2.09 W
