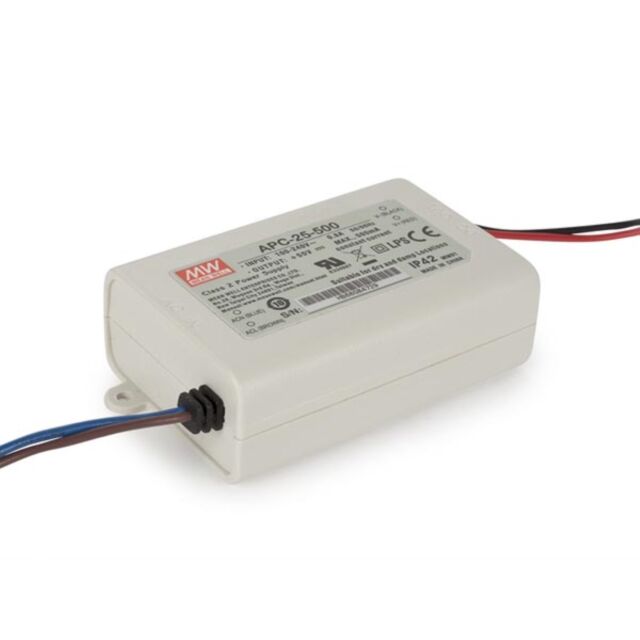

CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 500 mA - 25 W
€24.95
Availability: In stock or 3 working days
SKU
VL_APC-25-500
| Height | 7.000000 |
|---|---|
| External Id | APC-25-500 |
| EAN | 4711287438610 |
| Packaging | Boîte |
| Width | 13.000000 |
| Depth | 3.500000 |
Product basic info
- Primary colours: White
- Additional colours: Black, Red
- Depth unit: 84 mm
- Height unit: 29.5 mm
- Width unit: 57 mm
- Weight unit: 130 g
Physical properties
- Number of outputs: 1
- Housing type: Enclosed
Electrical data
- Output power rating: 25.2 W
- Output current rating: 500 mA
Technical data
- Dimmable: No
- Series LED driver: APC
- Input efficiency: 83 %
Set-up options
- Dimming type: No dimming
Environmental data
- IP rating: IP30
Power supply
- Input voltage rating VAC range: 90-264 V
- Input voltage rating VDC range: 127-370 V
- Input current rating: 0.4 A
- Output voltage rating VDC range: 15-50 V
- Technology type: Constant current mode
- courant continu
- entrée CA universelle / plage complète
- supporte entrées de 300 VCA durant 5 secondes
- protection contre: court-circuit / surtension
- boîtier en plastique complètement isolé
- compact et léger
- refroidissement: convection naturelle
- IP30
- prétesté sur 100 % de la puissance
- convient à l'éclairage LED et journaux lumineux
- économique / haute fiabilité
- 2 ans de garantie
