DMX-CONTROLLED RELAY
€44.95
Availability: Out of stock
SKU
VL_WML138

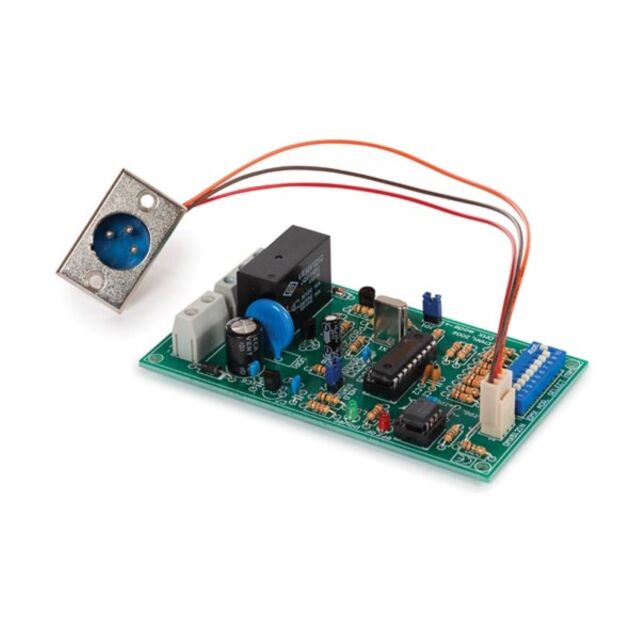

This module allows you to control a relay by means of the well-known DMX512 protocol. This is used to control dimmers, scanners, moving-head spots and other lighting devices with a simple wiring. In some cases, a simple ON/OFF selection is desired. there is where this module comes in. It is actually a bus-controlled power driver. The relay will be activated when the DMX value of the set channel equals 140 or more and turns off when the value is 120 or less. In combination with our /, a computer-controlled automation will be very easy to build.
| Height | 15.500000 |
|---|---|
| External Id | WML138 |
| EAN | 5410329732905 |
| Packaging | Boîte |
| Width | 7.800000 |
| Next delivery date | 2025-01-07 00:00:00 |
| Depth | 3.800000 |
Product basic info
- Instruction manual languages: Dutch, English, French, German, Spanish
- Primary colours: Green
- Additional colours: Grey
- Additional detailed colours: Metallic silver
- Depth unit: 3.8 cm
- Height unit: 15.5 cm
- Width unit: 7.8 cm
- Weight unit: 100 g
Technical data
- Specifications kits & modules: <ul> <li>switching capacity: 10A (resistive load)</li> <li>supply voltage: 12VDC non-regulated</li> <li>power consumption: max. 100mA</li> </ul>
Set-up options
- Self-assembly kit: Yes
Operational properties
- Coding skill level: none
- Electronics skill level: 3
- Mechanics skill level: 1
- Soldering skill level: none
- À savoir
- En combinaison avec le contrôleur DMX via USB, WSL8063 (5410329733490), vous pouvez facilement construire un système d'automatisation
