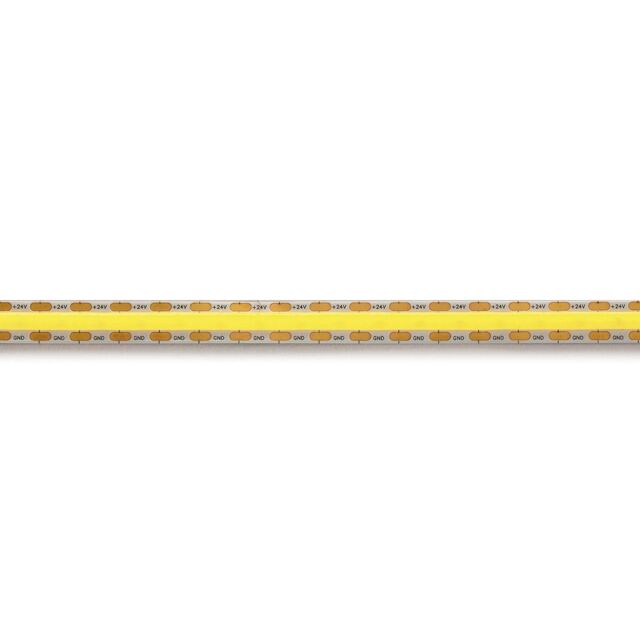

Flexible COB LED strip with short cutting distance - white 6500K - 528 LEDs/m - 5 m - 24 V - IP20 - CRI90
€119.90
Availability: Out of stock
SKU
VL_E24M698W65
This LED strip has a unique construction. The LED-die is directly mounted (pure gold bonded) on a specially designed flexible PCB. The LED phosphor is directly added on the PCB instead of in the standard LED chip (LED container). This unique technique allows us to create an entirely even light line. Separate LED dots aren't visible even when using an aluminum profile with transparent cover. The 7.6mm cutting distance allows you to have a greater flexibility during installation. The lighting fits perfectly within your intended LED profile.
| Height | 23.800000 |
|---|---|
| External Id | E24M698W65 |
| EAN | 5410329758028 |
| Packaging | Enveloppe |
| Width | 21.800000 |
| Depth | 1.500000 |
Product basic info
- Primary colours: White
- Height unit: 2 mm
- Width unit: 8 mm
- Weight unit: 110 g
- Material: PI (polyimide)
- Additional material: Copper
Physical properties
- Cable length: 35 cm
- Number of LEDs: 2640
- Number LEDs per meter: 528
- Coating type: No coating
- LED strip length: 5 m
Electrical data
- Energy label: F
- Power consumption per 50 cm: 5 W
Technical data
- Colour rendering index: 91.20
- Colour temperature: 6450 °K
- LED spacing: 1.89 mm
- LEDstrip colour type: Single
- LED type: COB
- Average lifetime: 25000 h
- Viewing angle: 180 °
- Luminous flux per 50 cm: 460 lm
- Black wire: Ground
- Red wire: 24 VDC
- Colour of LEDs: White
Environmental data
- IP rating: IP20
- Operating temperature range: -10-50 °C
- Usage location: Indoor only
Operational properties
- Cutting distance: 0.76 cm
- Self-adhesive: Yes
- Flexible printed circuit board: Yes
Power supply
- Input voltage rating VDC: 24 V
