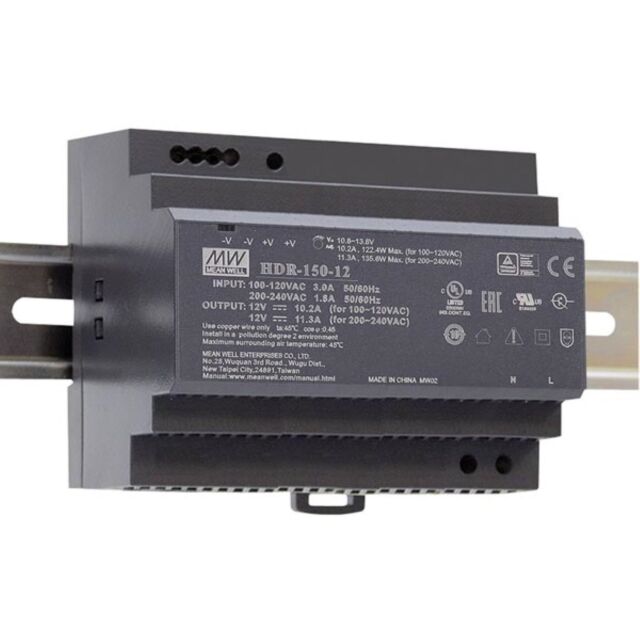

INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 150 W - 12 V

€72.95

Availability: In stock or 3 working days

SKU

VL_HDR-150-12

output

DC voltage: 12 V
rated current:
- 115 VAC (rated current): 10.2 A
- 230 VAC (rated current): 11.3 A
rated power:
- 115 VAC (rated power): 122.4 W
- 230 VAC (rated power): 135.6 W
ripple & noise (max.): 100 mVp-p
voltage adj. range: 10.8 - 13.8 V
voltage tolerance: ± 2.0 %
line regulation: ± 1.0 %
load regulation: ± 1.0 %
setup, rise time: 500 ms, 60 ms / 230 VAC - 500 ms, 60 ms / 115 VAC at full load
hold up time (typ.): 30 ms / 230 VAC - 12 ms / 115 VAC at full load

input

voltage range: 85-264 VAC (277 VAC operational) - 120-370 VDC (390 VDC operational)
frequency range: 47 - 63 Hz
efficiency (typ.): 89 %
ac current (typ.): 3 A / 115 VAC - 70 A / 230 VAC
inrush current (typ.): cold start 35 A / 115 VAC - 70 A / 230 VAC

protection

overload:
- 105 - 135 % rated output power
- protection type: constant current limiting withing 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed
- hiccup mode when output voltage < 50%, recovers automatically after fault condition is removed
overvoltage:
- 14.2 ~ 16.2 V
- protection type: shut down output voltage, re-power on to recover

environment

working temperature: -30 to +70 °C
working humidity: 20 to 90 % RH non-condensing
storage: -40 to +85 °C, 10 to 95% RH non-condensing
temperature coefficient: ± 0.03 %/°C (0 - 45°C ) RH non-condensing
vibration: 10 - 500 Hz, 2G 10 min / 1 cycle, 60 min each along X, Y, Z axes, mounting: compliance to IEC60068-2-6
operating altitude: 2000 m
over voltage category: III, according to EN62368, EN61558, EN50178, EN60664-1, EN62477-1, altitude up to 2000 meters

safety & EMC

safety standards: IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, EACTPTC004 approved, design refer to EN50178, TUV EN62368-1
withstand voltage: input to output: 4 kVAC
isolation resistance: input to output: 100 MOhm / 500 VDC / 25 °C / 70 % RH
EMC emission:
- conducted (EMC emission): EN55032 (CISPR32) / Class B
- radiated: EN55032 (CISPR32) / Class B
- harmonic current: EN61000-3-2 / Class A
- voltage flicker: EN61000-3-3
EMC immunity:
- ESD: EN61000-4-2 / Level 3, 8KV air - Level 2, 4KV contact - criteria A
- radiated susceptibility: EN61000-4-3 / Level 3 - criteria A
- EFT/Burest: EN61000-4-4 / Level 3 - criteria A
- surge: EN61000-4-5 / Level 4, 2KV/L-N - criteria A
- conducted (EMC immunity): EN61000-4-6 / Level 3 - criteria A
- magnetic field: EN61000-4-8 / Level 4, criteria A
- voltage dips and interruptions: EN61000-4-11 / >95% dip 0.5 periods, 30% dip 25 periods - >95% interruptions 250 periods
