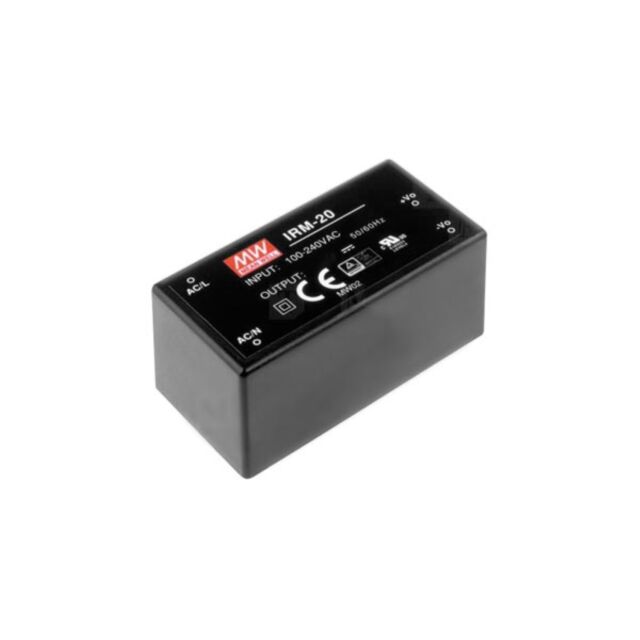

MEAN WELL - 20 W SINGLE OUTPUT ENCAPSULATED TYPE - 12 V
€21.95
Availability: In stock or 3 working days
SKU
VL_IRM-20-12
| Height | 3.500000 |
|---|---|
| External Id | IRM-20-12 |
| EAN | 4711287423852 |
| Packaging | Vrac |
| Width | 13.000000 |
| Depth | 7.500000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Black
- Depth unit: 52.4 mm
- Height unit: 24 mm
- Width unit: 27.2 mm
- Weight unit: 59 g
- Material: ABS
Physical properties
- Number of outputs: 1
- Housing type: Encapsulated
Electrical data
- Output power rating: 20 W
- Output current rating: 1.8 A
- Electrical protection: Overload, Overvoltage
Technical data
- Mounting type: Panel mounting
- Input efficiency: 84 %
- Power supply series: IRM
Environmental data
- IP rating: IP20
- Usage location: Indoor only
Power supply
- Output voltage rating VDC: 12 V
- Input voltage rating VAC range: 85-264 V
- Input voltage rating VDC range: 120-370 V
- Technology type: Constant voltage mode
- Input current rating at 115 VAC: 0.6 A
- Input current rating at 230 VAC: 0.4 A
- Input frequency range: 47-440 Hz
- entrée CA universelle - plage complète
- compact
- protections: court-circuit - surcharge - surtension
- refroidissement: par convection naturelle
- classe d'isolation II
- consommation à vide: no load power consumption < 0.1 W
- prétestée sur 100 % de la puissance
- haute fiabilité
