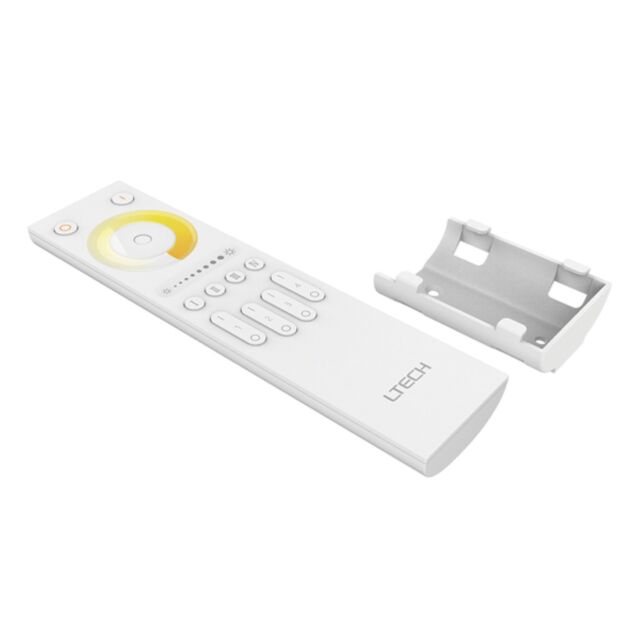

MULTI-ZONE SYSTEM - CCT (TUNABLE WHITE) RF LED REMOTE CONTROLLER - 4 ZONES
€59.95
Availability: In stock or 3 working days
SKU
VL_CHLSC41TX
This multi-zone system allows to control devices both wirelessly and via the DMX protocol. You can create up to 4 areas that can be controlled separately. Several receivers are available that allow DMX, 0-10V or LED strip dimming (PWM). You can control the system using the RF design remote control. Unlike a classic remote control, you don't need to point an RF remote control towards the receiver or the flush mount glass panels. With these glass panels, you can transform your classic lighting installation into a modern LED strip installation without having to change cables.
| Height | 4.800000 |
|---|---|
| External Id | CHLSC41TX |
| EAN | 5410329719784 |
| Packaging | Boîte |
| Width | 16.800000 |
| Depth | 2.400000 |
Product basic info
- Instruction manual languages: English
- Primary colours: White
- Depth unit: 22 mm
- Height unit: 166 mm
- Width unit: 47 mm
- Weight unit: 90 g
- Material: ABS
Physical properties
- Number of channels: 2
Technical data
- Radio frequency: 2.4 GHz
- LEDstrip colour type: Tunable white
- Max. remote control distance: 20 m
Set-up options
- Adjustable brightness: Yes
- Operation mode: DMX, RF, Wireless
- Adjustable colours: Yes
- Adjustable modes: No
- Adjustable scenes: Yes
- Adjustable zones: Yes
- Number of zones: 4
Environmental data
- Operating temperature range: -20-55 °C
- Usage location: Indoor only
Power supply
- Batteries included: No
- Battery required: Yes
- Number of batteries: 2
- Battery voltage rating: 3 V
- Rechargeable: No
- Input voltage rating VDC: 3 V
- Battery composition: Alkaline
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
Included
- LED indicator: Yes
- On / off switch: Yes
- télécommande RF sans fil pour système multizone (voir contrôleurs compatibles optionnels ci-dessous)
- permet le pilotage de 4 zones dans la configuration multizone sans fil
- fonctions des boutons:
- tout ÉTEINT
- ON/OFF
- voyant lumineux
- réglage de blanc tactile
- réglage tactile pour la luminosité
- sélection de scène
- sélection de zone
