Plaster board profile, RPL135FL US for trimless installation, recess, raw aluminum, suitable with the light reflector VEGA95 (increases light output + 20 %) - 2 m
€114.90
Availability: Out of stock
SKU
VL_AL-RPL35US-2

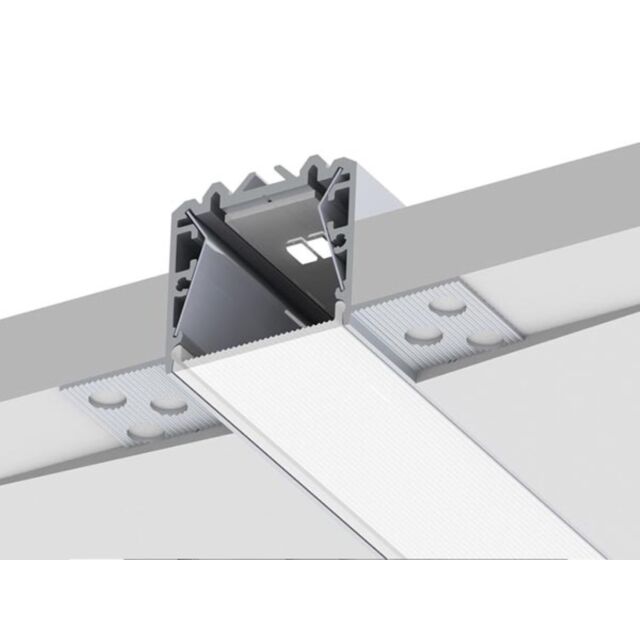

Narrow, high-quality raw aluminum profile for plasterboard ceilings and walls. Innovative design provides unique features such as: Premade angle modules, mounting rail for the junction box and dedicated openings for the ease of installation. The profile is also equipped with reflectors made of highly polished aluminum designed for better light distribution (improvement of luminaire efficiency, 18 - 20%). RPL35 US allows you to easily attach a 20mm wide PCB in the Zhaga standard and is designed to distribute the heat efficiently all the way up to 40 W/m. The RPL35 US profile is available with UV and impact resistant, snap-in diffusers: transparent, matt, prismatic transparent and prismatic matt.
| Height | 200.000000 |
|---|---|
| External Id | AL-RPL35US-2 |
| EAN | 5410329724023 |
| Packaging | Vrac |
| Width | 3.500000 |
| Depth | 7.500000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Grey
- Primary detailed colours: Metallic silver
- Depth unit: 2 m
- Height unit: 34 mm
- Width unit: 75 mm
- Weight unit: 65 g
- Material: Aluminium
Physical properties
- UV resistant: No
- Shape: U-shape
- Internal width: 35 mm
Technical data
- Mounting type: Built-in, Ceiling mounting, Wall mount
- Profile type: RPL35
- Thermal protection: No
- Profile series: Plasterboard line
Environmental data
- Usage location: Indoor only
- Temperature (solid) (°C): <ul> <li>Ambient temperature : 25 °C</li> <li>Total power: 36 W/m (72 LEDs)</li> <li>LED stripe: 17-DURIS</li> </ul>
