Plaster board profile, RSL15FL US for TRIMLESS INSTALLATION, recess, RAW aluminum, suitable with the light reflector VEGA95 (increases light output+20%) - 2m
€59.95
Availability: In stock or 3 working days
SKU
VL_AL-RSL15US-2

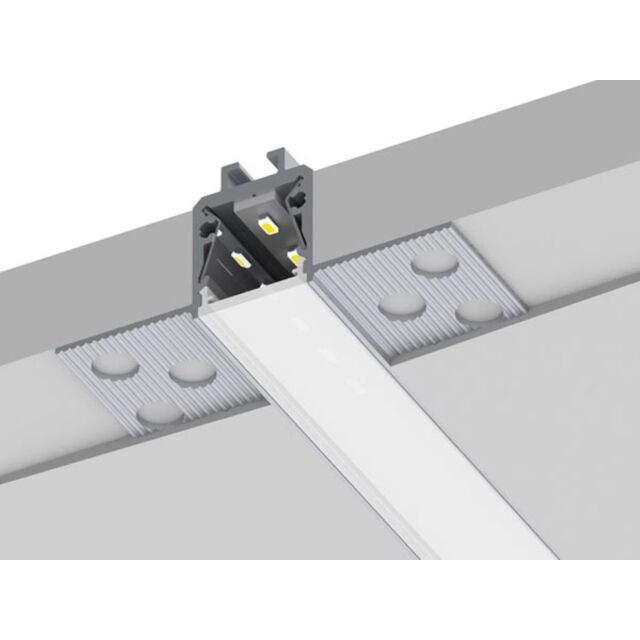

The first profile in Plasterboard Line originating from our Slim Line family. Designed to fit 12mm LED strip, with possibility to be equipped with highly polished aluminum reflectors which increase light output up to 20%. Together with it comes two standard covers: clear and opal, both can be used with micro-prismatic, slide-in film diffuser. Additionally, it is designed to be used with our 15-degree PMMA optic lens. Opal diffuser provides 'LED dots free effect' creating uniform line of light. High quality dedicated endcaps complement this raw-aluminum design, providing narrow and elegant solution.
| Height | 5.000000 |
|---|---|
| External Id | AL-RSL15US-2 |
| EAN | 5410329754341 |
| Packaging | Vrac |
| Width | 200.000000 |
| Depth | 5.000000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Grey
- Primary detailed colours: Metallic silver
- Depth unit: 2 m
- Height unit: 22.8 mm
- Width unit: 57.5 mm
- Weight unit: 50 g
- Material: Aluminium
Physical properties
- UV resistant: No
- Shape: U-shape
- Internal width: 17.5 mm
Technical data
- Mounting type: Built-in, Ceiling mounting, Wall mount
- Profile type: RSL15
- Thermal protection: No
- Profile series: Plasterboard line
Environmental data
- Usage location: Indoor only
- Temperature (solid) (°C): <ul> <li>Ambient temperature: 25 °C</li> <li>Total power: 10 W/m (126 LEDs)</li> <li>LED stripe: 6-DURIS</li> </ul>
