RESISTOR 25W 15E
€6.95
Availability: In stock or 3 working days
SKU
VL_RG15E0

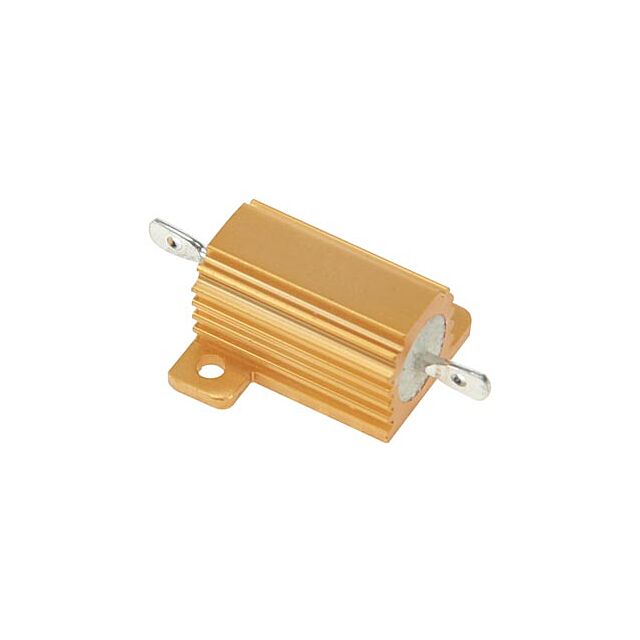

These wirewound 25W resistors can handle continuous high power dissipation in a compact size. The resistor is moulded in an anodized aluminium heat sink for maximum heat dissipation.
| Height | 1.570000 |
|---|---|
| External Id | RG15E0 |
| EAN | 5410329382926 |
| Packaging | Vrac |
| Width | 4.470000 |
| Depth | 2.780000 |
Product basic info
- Primary colours: Red
- Primary detailed colours: Copper
- Additional colours: Grey
- Additional detailed colours: Metallic silver
- Depth unit: 27 mm
- Height unit: 15.5 mm
- Width unit: 47 mm
- Weight unit: 17 g
- Material: Anodized aluminium
Electrical data
- Dielectric strength voltage rating VAC: 3000 V
- Resistance: 15 ohm
- Temperature coefficient of resistance (TCR): ± 200 ppm/°C
- Load resistor: delta R/R < ±1% + 0.05 ohm (surface temperature up to max. 350°C)
- Short term overload: delta R/R < ±2% + 0.05 ohms (100% power 5s)
- Minimum insulation resistance at 500 VDC: 100 megohm
Technical data
- Mounting type: Screw mounting
- Power rating: 25 W
- Tolerance: ± 5 %
- applications: TV et systèmes audio, magnétoscopes, ordinateurs, ...
