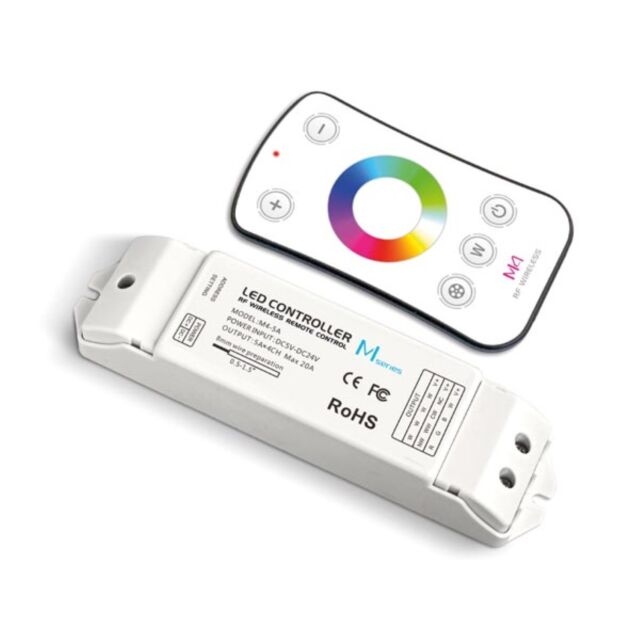

RGBW LED CONTROLLER - WITH RF REMOTE CONTROLLER
€79.95
Availability: In stock or 3 working days
SKU
VL_CHLSC16
| Height | 23.000000 |
|---|---|
| External Id | CHLSC16 |
| EAN | 5410329605360 |
| Packaging | Vrac |
| Width | 16.000000 |
| Depth | 3.000000 |
Product basic info
- Instruction manual languages: English
- Primary colours: White
- Material: PVC (polyvinyl chloride)
Physical properties
- Light colour range led: RGBW
- RF remote depth: 104 mm
- RF remote height: 9 mm
- RF remote width: 60 mm
- LED dimmer depth: 175 mm
- Led dimmer height: 30 mm
- LED dimmer width: 30 mm
- Weight RF remote: 42 g
- Number of LED outputs: 4
- Weight LED dimmer: 125 g
Electrical data
- LED dimmer output type: RF, PWM-CV
- Maximum LED output current rating: 20 A
- Output power rating 12 V: 144 W
- Output power rating 24 V: 288 W
- Reverse polarity: Yes
- Electrical protection: Overload, Short-circuit
- Maximum LED output current per output: 5 A
Technical data
- Radio frequency: 433.92 MHz
- Dimmable: No
- Protocol: Manual
Environmental data
- IP rating: IP20
- Operating temperature range: -30-55 °C
- Usage location: Indoor only
Operational properties
- Remote distance: 40 m
- Restart after protection: No
Connections
- Wire size: 2.5 mm²
Power supply
- Input voltage rating VDC range: 12-24 V
Included
- On / off switch: Yes
- idéal pour un usage avec des flexibles à LED RGBW. Consultez notre site web.
- pilotage via télécommande de fréquence radio (RF)
- télécommande RF:
- 2 boutons de réglage de vitesse et de luminosité
- boutons marche et arrêt
- bouton de sélection de mode
- bouton blanc
- cercle de touche RVB
- à utiliser uniquement avec une alimentation de max. 240 W / 12 V ou 480 W / 24 V
