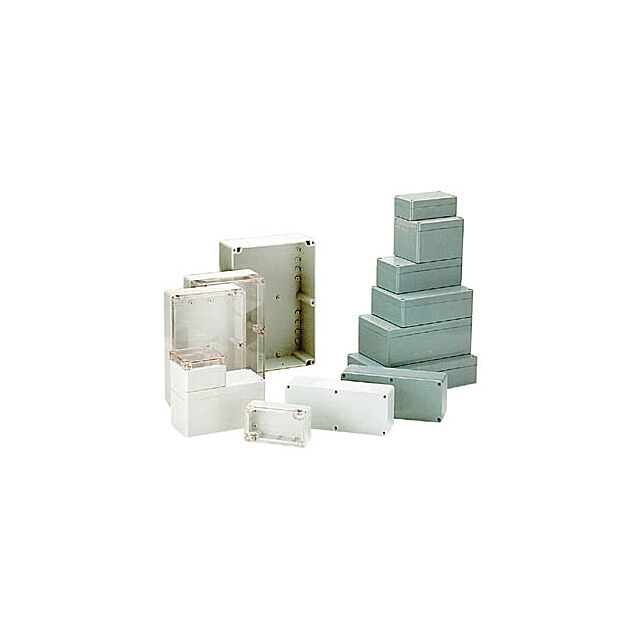

SEALED ABS ENCLOSURE - DARK GREY - 115 x 65 x 55 mm
€11.95
Availability: In stock or 3 working days
SKU
VL_G308
These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C). The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies. The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.
| Height | 6.500000 |
|---|---|
| External Id | G308 |
| EAN | 5410329299842 |
| Packaging | Poche |
| Width | 11.500000 |
| Depth | 5.500000 |
Product basic info
- Primary colours: Grey
- Primary detailed colours: Dark grey
- Depth unit: 55 mm
- Height unit: 65 mm
- Width unit: 115 mm
- Weight unit: 124 g
- Material: ABS
Physical properties
- Lid cover: Yes
- Sealed: Yes
- Mounting holes: Yes
Technical data
- Mounting type: Horizontal
Environmental data
- IP rating: IP65
- Operating temperature range: -20-100 °C
