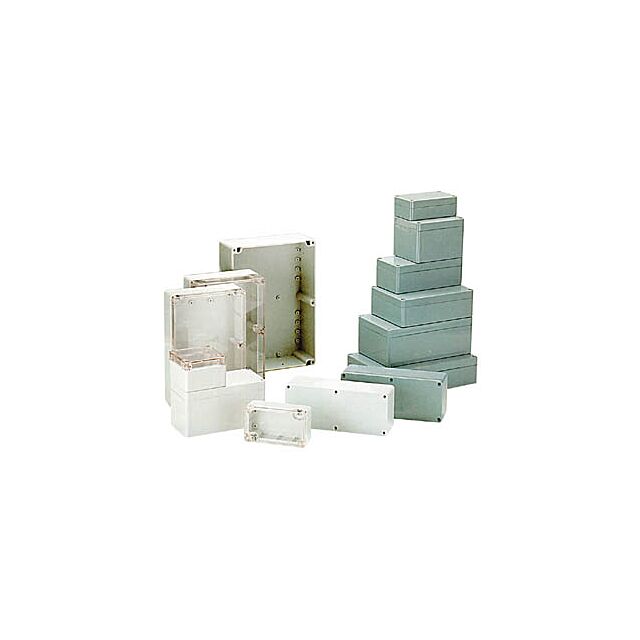

SEALED POLYCARBONATE BOX - LIGHT GREY -115 x 65 x 40 mm
€13.95
Availability: In stock or 3 working days
SKU
VL_G203
These enclosures consist of polycarbonate (operating temperature : -40°C to +125°C). The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, which prevents moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies. The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.
| Height | 6.500000 |
|---|---|
| External Id | G203 |
| EAN | 5410329299835 |
| Packaging | Poche |
| Width | 11.500000 |
| Depth | 4.000000 |
Product basic info
- Primary colours: Grey
- Primary detailed colours: Light grey
- Depth unit: 65 mm
- Height unit: 40 mm
- Width unit: 115 mm
- Weight unit: 114 g
- Material: Polycarbonate/UV-stabilized
Physical properties
- Lid cover: Yes
- Sealed: Yes
- Mounting holes: Yes
- With feet: No
Technical data
- Mounting type: Free standing
- DIN rail: No
- Flanges: No
Environmental data
- Operating temperature range: -40-125 °C
- Usage location: Indoor only
Included
- Fixings: No
