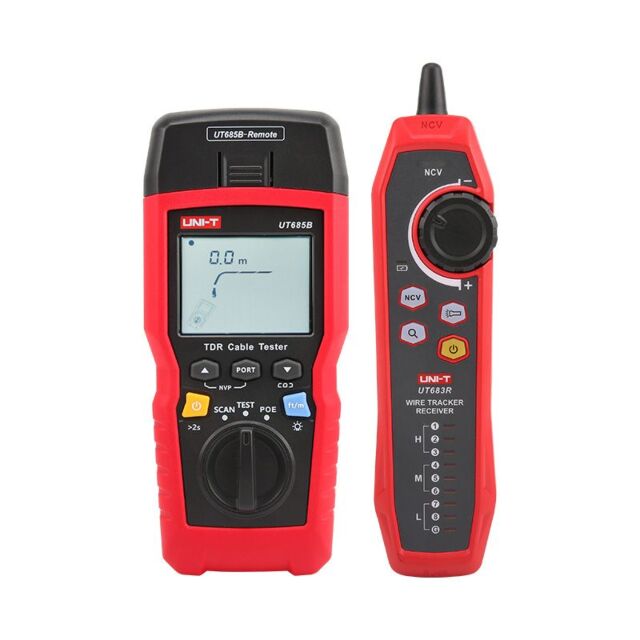

Testeur de câble polyvalent avec technologie TDR - Uni-T UT685B Kit

139,00 €
  • Testeur de câble polyvalent, adapté à différents types de câbles, y compris les câbles coaxiaux, à paires torsadées et les câbles réseau PoE
  • Avec des fonctions complètes, telles que la détermination de la longueur du câble, le séquençage de la ligne, la détection PoE et les normes PoE
  • La technologie TDR garantit des mesures précises



Disponibilité : En stock ou 3 jours ouvrables
SKU
UNT_UT685B/KIT

Spécifications techniques
UT685B KIT can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters.

Effectively reduce the operator’s ineffective testing and improve work efficiency, which makes high-quality installations more efficient and easier to troubleshoot.

Features of UT685B KIT TDR Cable Tester
Certifications: CE, UKCA, RoHS
● 2.8 inch backlit LCD display

● Graphical interface

● Cable length test

● Tests RJ11, RJ45 and coaxial cable types

● Identify POE standards
● Digital hunt

● Range 500m

● Resolution 0.33m

● 70V DC input protection

● TDR technology: no blind area testing

Specifications of UT685B KIT TDR Cable Tester


Specifications
  UT685B KIT
Tested cable type

Twisted pair cable:

1. UTP (unshielded cable),
2. FTP (aluminum foil shielded cable);
3. SSTP (double shielded network cable);

Coaxial cable: 50Ω, 75Ω, 93Ω


Cable length test

Range: 500 m
Resolution: 0.33 m
Accuracy: ± 4% or 0.6 m
POE detection POE power detection
POE standard: 802.3AF
POE standard: 802.3AT
Ethernet port test
Cable location
Port blinks
Input protection 70VDC
Screen 2.8″ LCD
Auto power off Around 10 minutes
General Characteristics
Standard accessories RJ45 adapting cable: 1 pc;
RJ11 adapting cable: 1 pc;
RJ11 adapting cable (adapted to alligator clip): 1 pc;
Plug, F-connector to F-connector: 1 pc;
User manual: 1 pc
Power AAA alkaline batteries x4
Product Dimension 180mm×84mm×37.8mm



Plus d’information
BrandUNI-T
